Main Spindle Motor IMB5
AC Spindle Motor
Featured

Rated speed 1500 rpm Max. speed 6000 rpm

Asynchronous servo motors with laminated frame design.

Power ratings 2.2kW / 3kW / 3.7kW / 4.5kW / 5.5kW / 7.5kW / 9.5kW / 11kW / 15kW / 18.5kW / 22kW / 30 kW / 37kW / 45kW / 55kW / 75kW / 90kW / 110kW.

Forced air ventilation.

Rated voltage 380V, other voltages can be customized.

Built-in incremental encoder (tamagawa), other types of encoders such as absolute encoder, resolver etc. are optional.

Excellent rotational accuracy up to 10 μm.

Excellent vibration severity.

High dynamic response (short acceleration times).

Low noise emission.



Z spindle motor has a constant torque below the rated power, and a constant power above the rated power. Therefore the starting torque is more stable comparing with normal induction motors. It also reduces a lot of unnecessary energy consumption due to directly start with an inverter. As the small inertia of the ac spindle motor, it is easy to start and stop, no carbon brush, no maintenance, no magnet, no need to regularly detect the magnetic pole position. Currently, it has been widely used in large starting torque or energy-saving industrial machines.



Spindle Motor ZB175 - 152R2 ZC175 - 153 ZD175 - 153R7 ZE175 - 154R5
PN [kW] 2.2 3 3.7 4.5
S3-30min [kW] 3 3.7 5.5 6.5
S3-30min [Nm] 19.1 23.6 35 41.4
UN [V] 380
IN [A] 4.7 6.2 7.6 9.1
nN [rpm] 1500
MN [Nm] 14 19.1 23.6 28.7
CPSR [rpm] 1500 ~ 4000
nmax [rpm] 6000
J [kg.m2] 0.0054 0.0071 0.0085 0.0092


B [mm] 80 105 120 140
L [mm] 390 415 430 450

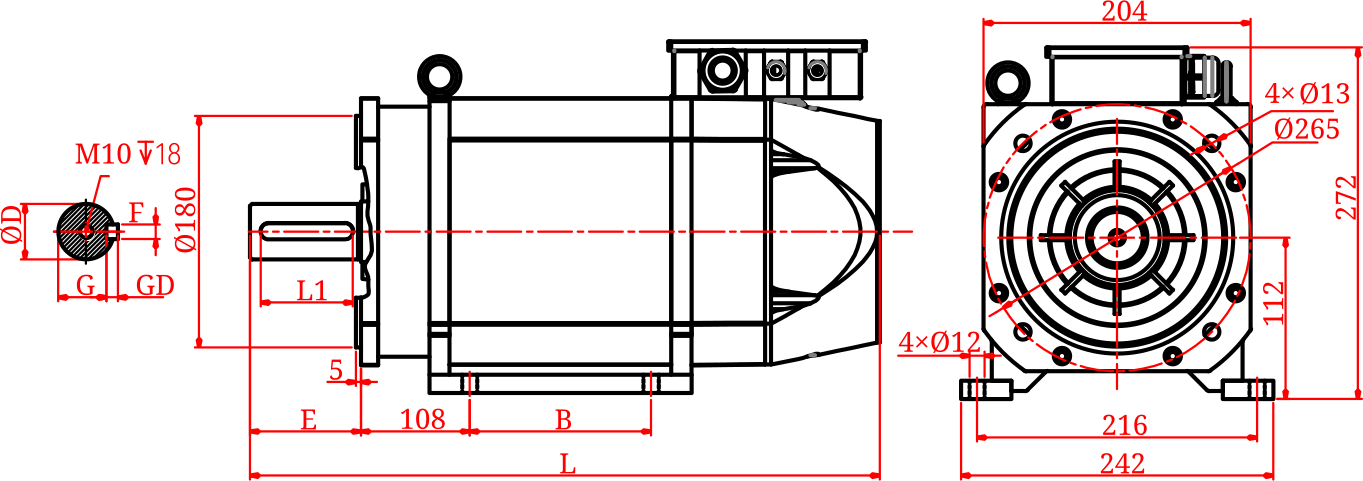

Spindle Motor ZB205 - 155R5 ZC205 - 157R5 ZD205 - 159R5 ZE205 - 1511
PN [kW] 5.5 7.5 9.5 11
S3-30min [kW] 7.5 11 13 15
S3-30min [Nm] 47.8 70 82.8 95.5
UN [V] 380
IN [A] 10.7 14.4 18.1 20.7
nN [rpm] 1500
MN [Nm] 35 47.8 60.5 70
CPSR [rpm] 1500 ~ 4000
nmax [rpm] 6000
J [kg.m2] 0.0198 0.0255 0.032 0.04


B [mm] 95 130 155 190
D [mm] 38 48
E [mm] 80 110
F [mm] 10 14
G [mm] 33 42.5
GD [mm] 8 9
L1 [mm] 60 90
L [mm] 470 505 530 595
WH M10 * 18 M12 * 20



Spindle Motor ZC265 - 1515 ZD265 - 1518R5 ZE265 - 1522 ZF265 - 1530
PN [kW] 15 18.5 22  30
S3-30min [kW] 18.5 22  30 37
S3-30min [Nm] 117.8 140.1 191  235.6
UN [V] 380
IN [A] 27.6 34.1 40.3 54.5
nN [rpm] 1500
MN [Nm] 95.5 117.8  140.1 191
CPSR [rpm] 1500 ~ 4000
nmax [rpm] 6000
J [kg.m2] 0.089 0.105 0.1185 0.135


B [mm] 120 150  180 210
D [mm] 48 55
E [mm] 110
F [mm] 14 16
G [mm] 42.5 49
GD [mm] 9 10
L [mm] 570 600 630 660

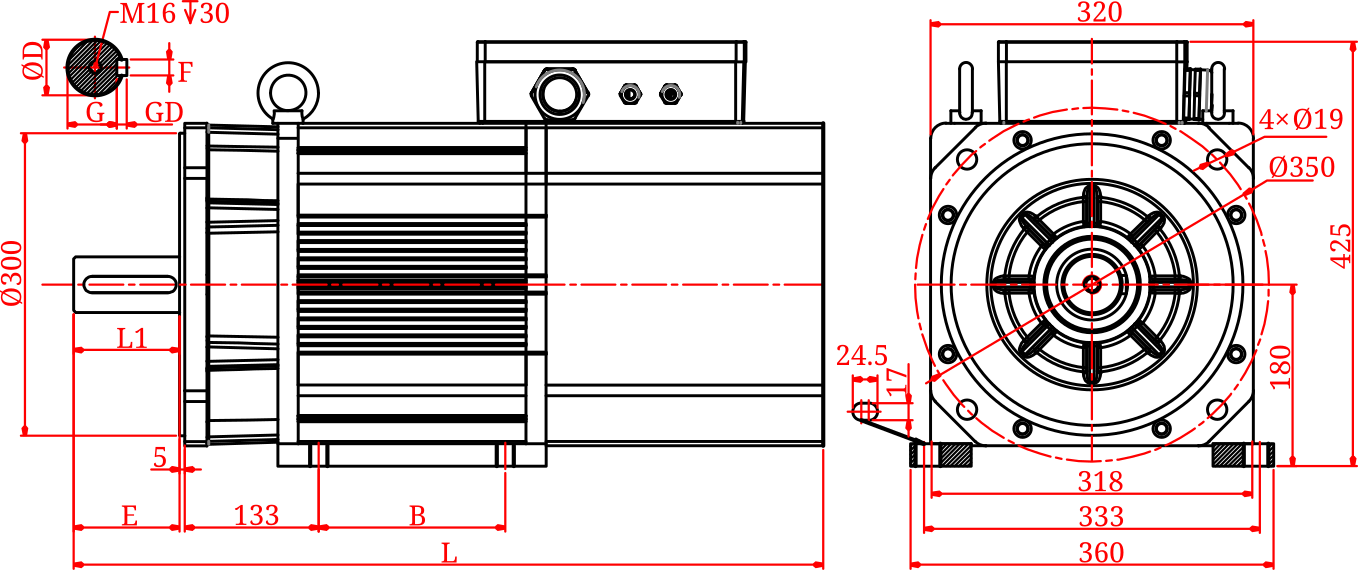

Spindle Motor ZB320 - 1530 ZC320 - 1537 ZD320-1545 ZE320 - 1555
PN [kW] 30 37 45  55
S3-30min [kW] 37 45  55 75
S3-30min [Nm] 235.6 236 287  350
UN [V] 380
IN [A] 54 64.3 78.5 96
nN [rpm] 1500
MN [Nm] 191 236  287 350
CPSR [rpm] 1500 ~ 4000
nmax [rpm] 6000
J [kg.m2] 0.24 0.29 0.36 0.44


B [mm] 185 220  270 315
D [mm] 55 60 60 65
E [mm] 110   140   140   140
F [mm] 16 18
G [mm] 49 53 53 58
GD [mm] 10 11
L [mm] 725 785 840 880



Spindle Motor ZB380 - 1555 ZC380 - 1575 ZD380-1590 ZE380 - 15110
PN [kW] 55 75 90 110
S3-30min [kW] 75 90 110 132
S3-30min [Nm] 478 573 700 840
UN [V] 380
IN [A] 96 130 156 196
nN [rpm] 1500
MN [Nm] 350 478  573 700
CPSR [rpm] 1500 ~ 4000
nmax [rpm] 6000
J [kg.m2] 0.49 0.64 0.78 0.98


B [mm] 160 230 300 360
D [mm] 65 75 75 75
E [mm] 140 140   140   140
F [mm] 18 20
G [mm] 58 67.5 67.5 67.5
GD [mm] 11 12
L [mm] 770 840 915 970
